Description

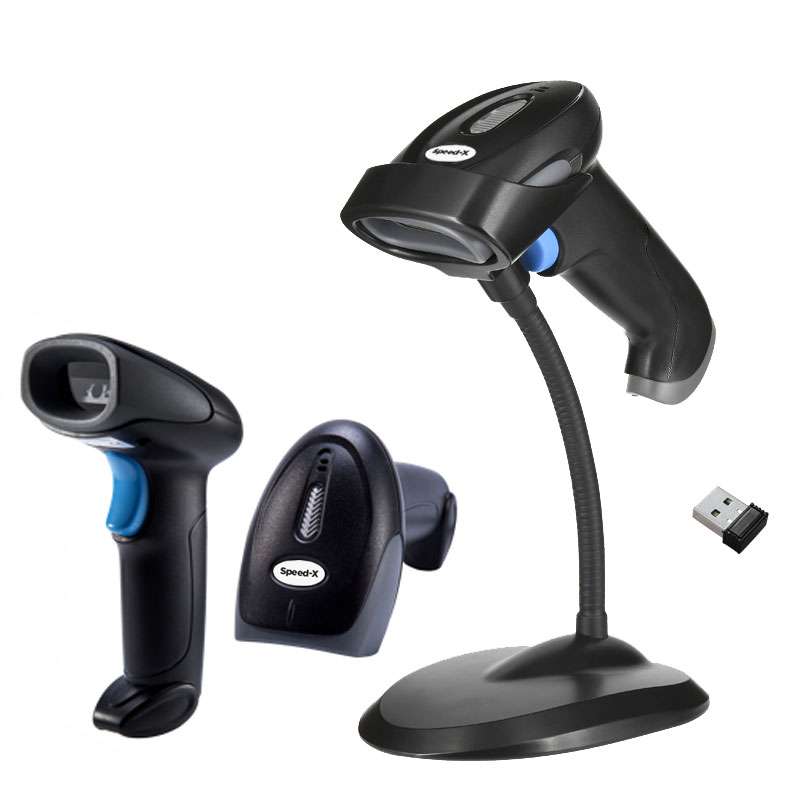

Description: SPEED-X 8700 2D WIRELESS 2.4GHZ BARCODE SCANNER WITH STAND AND RECEIVER –
Detail:
2D Wireless 2.4G Handheld Barcode Scanner
Scanner with Stand or reciver & charging cable.
| Wireless Characteristics | |
| Communication mode | Real Time Mode/Cache mode/Inventory mode |
|
Communication mode |
2.4G：2.402 to 2.480GHz |
|
Transmission range |
2.4G：30m（In empty area） |
| Battery capacity | 2000mAh (Lithium battery) |
| Charge Time from Empty to Full Charge | 6H |
Electrical Characteristics |
|
| Interface Supported | USB HID KEYBOARD/USB VCP |
| Input Voltage | DC 5V±5% |
| Current | Max:120mA |
Performance Characteristics |
|
| Sensor | 640×480 CMOS |
| Scanning Angle | Corner 180° |
| Elevation ± 55° | |
| Deflection ± 55° | |
| Field of view | H 36°，V 27° |
| Min Resolution | ≥5mil |
| Min .PCS value | 〉30%UPC/EAN 13（13mil） |
| Decode Capability | 1D：Code 128、Ean-13 、Ean-8、UPC-E、UPC-A、ITF-25（Interleaved 2 0f 5）、Code39、Code93、Codabar
2D：QR Code、 Data Matrix 、PDF417 |
Environmental Characteristics |
|
| Temperature | operation：-20℃~+60℃ |
| storage：-40℃~+80℃ | |
| Humidity | operation：5%~95%（no condensation） |
Physical Characteristics |
|
| Dimensions | 90mm x67mm x 168mm(L*W*H) |
| Weight | 130g |
| Indicator | Beeper, LED |
